por

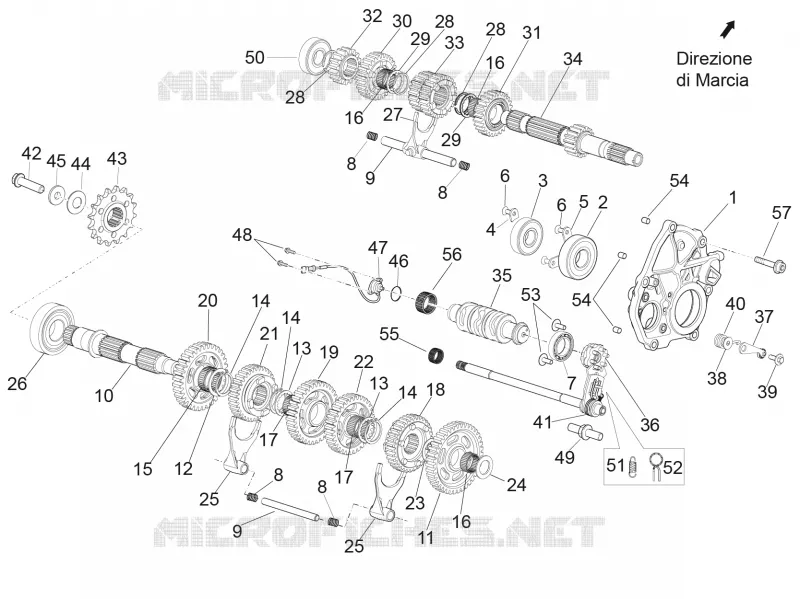

CAJA DE CAMBIOS
1
2
3
4
5
6
6
7
8
8
8
8
9
9
10
11
12
13
13
14
14
14
15
16
16
16
17
17
18
19
20
21
22
23
24
25
25
26
27
28
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
56
57
1
Trasmission support
2A000436
133,78€ Precio unitario con IVA
2
Ball bearing 25x62x17
898634
19,96€ Precio unitario con IVA
3
Ball bearing 20x52x15
898635
16,91€ Precio unitario con IVA
4
Check bearing plate
AP9150145
44,94€ Precio unitario con IVA
5
Check bearing plate
857271
16,24€ Precio unitario con IVA
6
screw M6x16
AP8152166
6,04€ Precio unitario con IVA
7
Ball bearing 25x42x9
857250
14,00€ Precio unitario con IVA
8
Spring
857175
10,26€ Precio unitario con IVA
9
Fork shaft
2A000440
44,11€ Precio unitario con IVA
10
Driven shaft
857236
396,56€ Precio unitario con IVA
11
1st wheel gear Z=39
2A000879
278,75€ Precio unitario con IVA
12
Washer 30x40x1,5
857308
18,42€ Precio unitario con IVA
13
Clearance washer
857247
23,21€ Precio unitario con IVA
14
Circlip D30
857248
7,28€ Precio unitario con IVA
15
Roller cage 30x35x13
857309
108,28€ Precio unitario con IVA
16
Roller cage 24x28x13
857233
106,62€ Precio unitario con IVA
17
Roller cage 26x30x15,6
857244
106,62€ Precio unitario con IVA
18
5th wheel gear
2A000883
261,18€ Precio unitario con IVA
19
3rd gear on the sec. Z=34
2A000285
193,08€ Precio unitario con IVA
20
2nd gear on the sec. Z=33
2A000284
207,34€ Precio unitario con IVA
21
6th gear on the sec. Z=34
2A000288
279,89€ Precio unitario con IVA
22
4th gear on the sec. Z=31
2A000286
194,33€ Precio unitario con IVA
23
Washer 24x35x1
857246
18,42€ Precio unitario con IVA
24
Washer 20,1x33,5x2,5
857245
16,67€ Precio unitario con IVA
25
Fork
2A000558
231,72€ Precio unitario con IVA
26
Ball bearing 30X72X19
898633
28,37€ Precio unitario con IVA
27
Fork
2A000453R
294,64€ Precio unitario con IVA
28
Washer for shafts
857232
7,28€ Precio unitario con IVA
29
Clearance washer
857234
23,21€ Precio unitario con IVA
30
6th gear on the sec. Z=27
2A000281
161,81€ Precio unitario con IVA
31
5th gear on the sec. Z=23
2A000280
251,40€ Precio unitario con IVA
32
2nd gear on the sec. Z=16
2A000278
97,55€ Precio unitario con IVA
33
3rd-4th pinion gear Z=20/21
2A000554
432,48€ Precio unitario con IVA
34
Primary gear shaft
2A000552
476,58€ Precio unitario con IVA
35
Shift cam
857251
278,52€ Precio unitario con IVA
36
Index washer
857123
No disponible
37
Index assy. lever
857274
48,25€ Precio unitario con IVA
38
Washer D6,3x18x1
AP9150051
6,92€ Precio unitario con IVA
39
Screw w/ flange M6x15
AP9150006
15,79€ Precio unitario con IVA
40
Spring
2A000048
9,59€ Precio unitario con IVA
41
Gear shaft+spring cpl.
857253
145,24€ Precio unitario con IVA
42
Screw w/ flange M10x35
AP8152318
5,52€ Precio unitario con IVA
43
Pinion Z=16
890827
77,76€ Precio unitario con IVA
44
Belleville spring
854909
4,09€ Precio unitario con IVA
45
T bush
854951
13,37€ Precio unitario con IVA
46
O-ring
857494
10,46€ Precio unitario con IVA
47
Gear position sensor
2D000300
No disponible
48
Screw w/ flange M5x15
AP8152273
3,74€ Precio unitario con IVA
49
Threaded pin
899599
16,50€ Precio unitario con IVA
50
Ball bearing 20x52x15
898636
18,06€ Precio unitario con IVA
51
Fasten spring
857260
22,62€ Precio unitario con IVA
52
Spring
2A000047
13,16€ Precio unitario con IVA
53
Hex socket screw M6x16 inox
GU98370616
4,48€ Precio unitario con IVA
54
Pin M8x12
857427
4,12€ Precio unitario con IVA
55
12x8x12 roller bearing
B045224
10,01€ Precio unitario con IVA
56
Roller cage HK1512
857249
35,48€ Precio unitario con IVA
57
Screw w/ flange M8x25
AP8152287
4,64€ Precio unitario con IVA
Los esquemas son meramente informativos. En caso de duda, nuestros especialistas están a su disposición para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de seleccionar la cantidad deseada. El precio unitario indicado corresponde a una unidad de cada referencia.
